PTO Cruising Alternator with Compressor

The PTO alternator runs directly from the engine / gear box PTO outlet and is connected to an inverter which is placed in a save position. The output of the inverter is 4kW continuous power 240V/50Hz through sign wave.

Each system is designed separately to meet the engine’s speed requirements and the cruising alternator can operate in variable speeds of the engine from approx 1500-3000rpm.

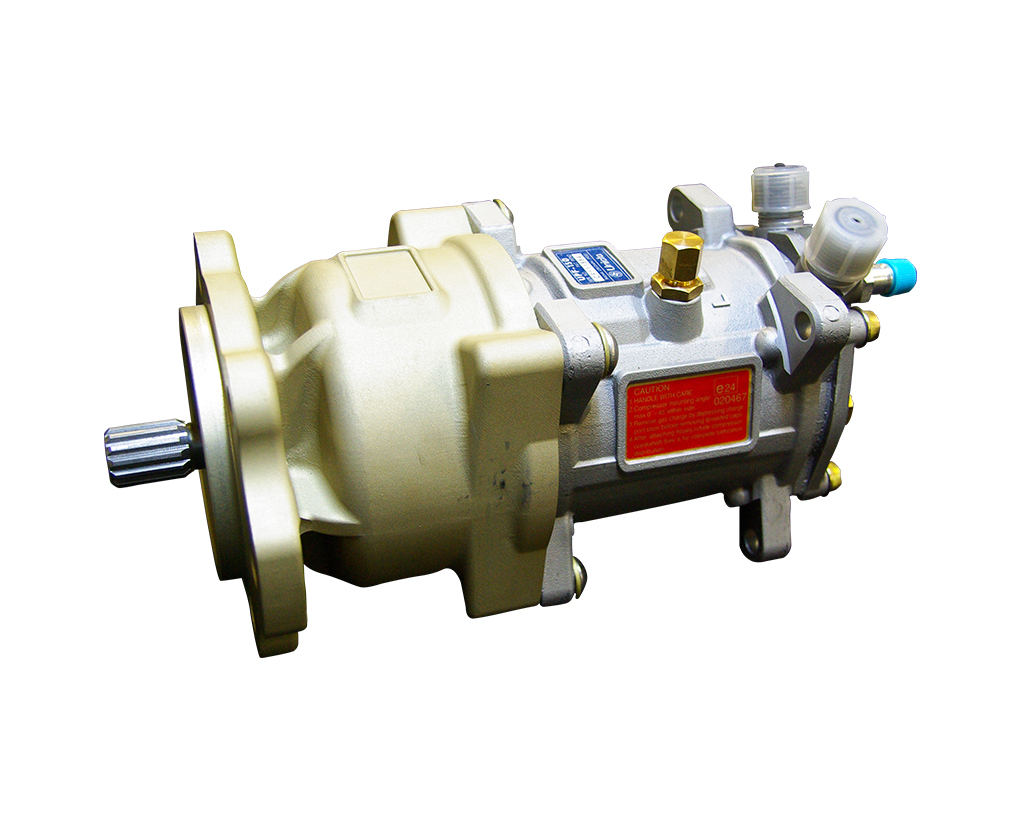

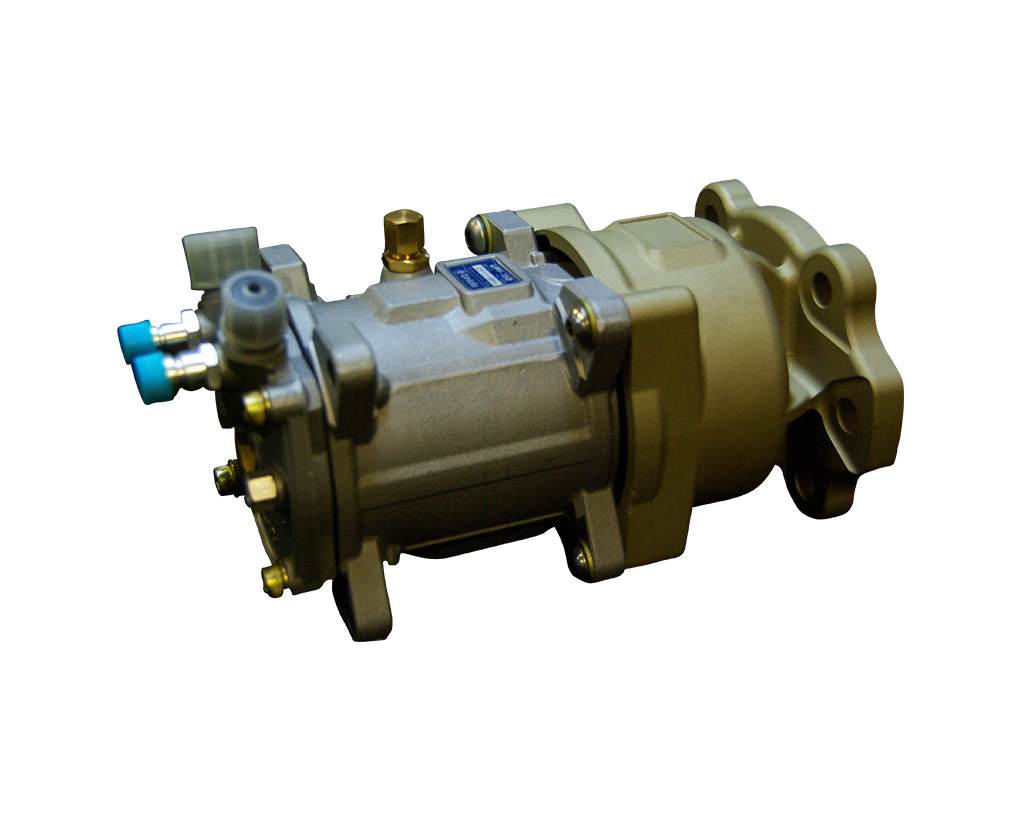

In addition to the cruising alternator there is a belt driven compressor from the rear of the alternator that is capable of producing up to 100,000 BTUs of refrigeration power. This can be pumped into a suitable condensing unit.

Larger capacity compressors can also be mounted, pending requirements. The output of the compressor is proportional to the rpms of the engine.

Download PDF Specification Downloadable PDFPerformance Chart
